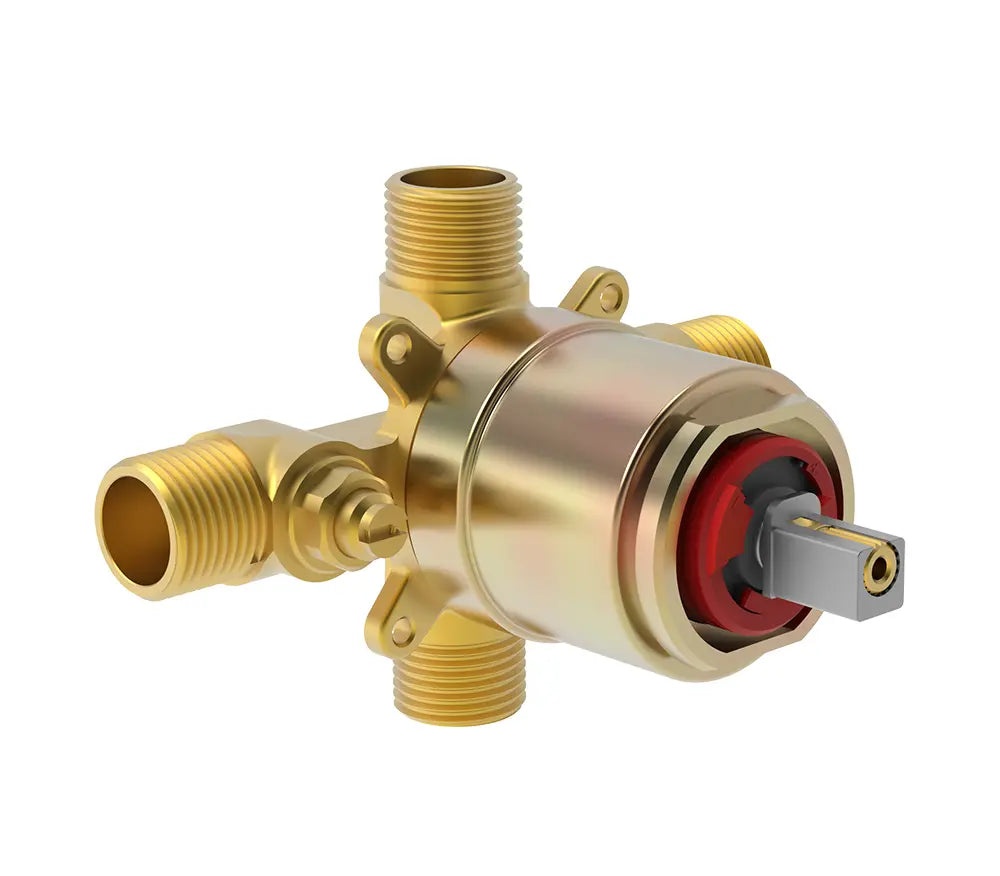

MPT Connection Pressure Balancing Valve with Stops, AL7-01

Engineered for lasting performance and easy installation, this forged brass pressure balance shower rough-in valve is built to meet the demands of both residential and commercial plumbing systems. Featuring a solid body, ceramic disc cartridge, and integrated screwdriver stops, this valve delivers consistent water control, reliable anti-scald protection, and straightforward serviceability.

The included retaining ring is is made with flats to secure the cartridge or test cap without the need for screws, allowing for fast cartridge swaps during installation or maintenance. The flat-back valve body design sits flush against cross braces, while the included plaster guard doubles as a rough-in guide and thin-wall support.

With a wide installation range of 1-3/4" to 2-3/4" from finished wall to valve body, this rough-in accommodates various wall depths and layout requirements. Back-to-back installations are easily handled with the built-in reversing capability, and the adjustable hot limit stop helps prevent scalding.

Certified to meet or exceed ASSE 1016-P (anti-scald) standards and IAPMO approved, this valve is the preferred choice for reliable and code-compliant installations.

• All-brass cast body resists corrosion and ensures long-term durability

• 1/2" end connections compatible with standard plumbing systems

• Ceramic disc pressure balance cartridge provides smooth, consistent operation

• Integrated screwdriver stops for localized water shut-off during servicing

• Back-to-back installation ready with hot/cold reversal

• Adjustable anti-scald limit stop for added safety

• Stainless steel retaining ring allows quick cartridge/test cap changes

• Flat-back design for flush mounting to cross braces

• Includes plaster guard for rough-in guidance and support

• Rough-in range: 1-3/4" to 2-3/4" from finished wall

• Meets ASSE 1016-P anti-scald standard; IAPMO approved

This pressure balance rough-in valve is a contractor-trusted solution for high-performance shower systems. Built for safety, simplicity, and durability, it supports long-term reliability in any bathroom project.

• Material Brass
• Flow Rate: 6.25 GPM
• Cartridge Type Pressure Balancing
• Connections 1/2" MPT Inlet and Outlets
• Valve Stops Included
• Warranty Limited Lifetime Warranty
