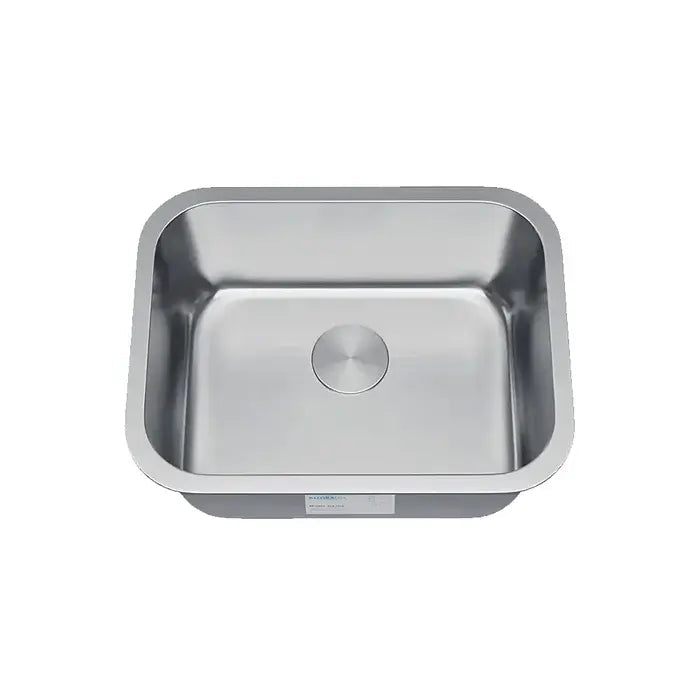

18" Compact Undermount Stainless Steel Single Bowl ADA Bar and RV Sink, ADA-KSN-1816-S
Choose options
-
Specification Sheet (PDF)
-
2D Design (DXF)
-
CutOut Template (DXF)
-
Installation Guide (PDF)
-
For Additional CutOut Templates and Design Files, click here
The Allora USA 18-inch ADA-Compliant Undermount Stainless Steel Sink combines compact functionality with elegant, accessible design. With its shallow 5-1/2" bowl depth, this sink provides the necessary knee clearance for ADA-compliant installations while offering versatile use for kitchens, prep stations, or RVs that require shallow drainage. Crafted from premium 18-gauge, 304-grade stainless steel and finished with a brushed satin polish, it delivers long-lasting durability, easy maintenance, and modern style.
-
Compact 18" x 16" overall dimensions with an ADA-compliant shallow 5-1/2" bowl depth
-
Fits 21" minimum base cabinets—ideal for kitchens, utility rooms, bar/prep stations, and ADA projects
-
Premium 18-gauge, 304 stainless steel construction offers superior strength and rust resistance
-
Brushed satin finish conceals minor scratches and maintains a clean, uniform appearance
-
Wide standard-radius corners enhance usable basin space and simplify cleaning
-
Rear 3-1/2" drain placement maximizes usable bottom space and improves under-cabinet storage
-
Sound-deadening pads and insulating undercoating minimize noise and vibration for a quieter sink experience
-
Non-porous stainless steel surface resists staining, water spots, and corrosion
-
Undermount installation creates a seamless transition to countertops, supporting ADA compliance
-
Installation-ready with included cutout template and mounting hardware (drain kit sold separately)
-
Covered by Allora USA’s Limited Lifetime Warranty
With its sleek appearance, commercial-grade durability, and ADA-compliant design, the Allora USA 18-inch Single Bowl Sink is a smart solution for accessible spaces that don't sacrifice performance or style.
- Bowls: Single Bowl

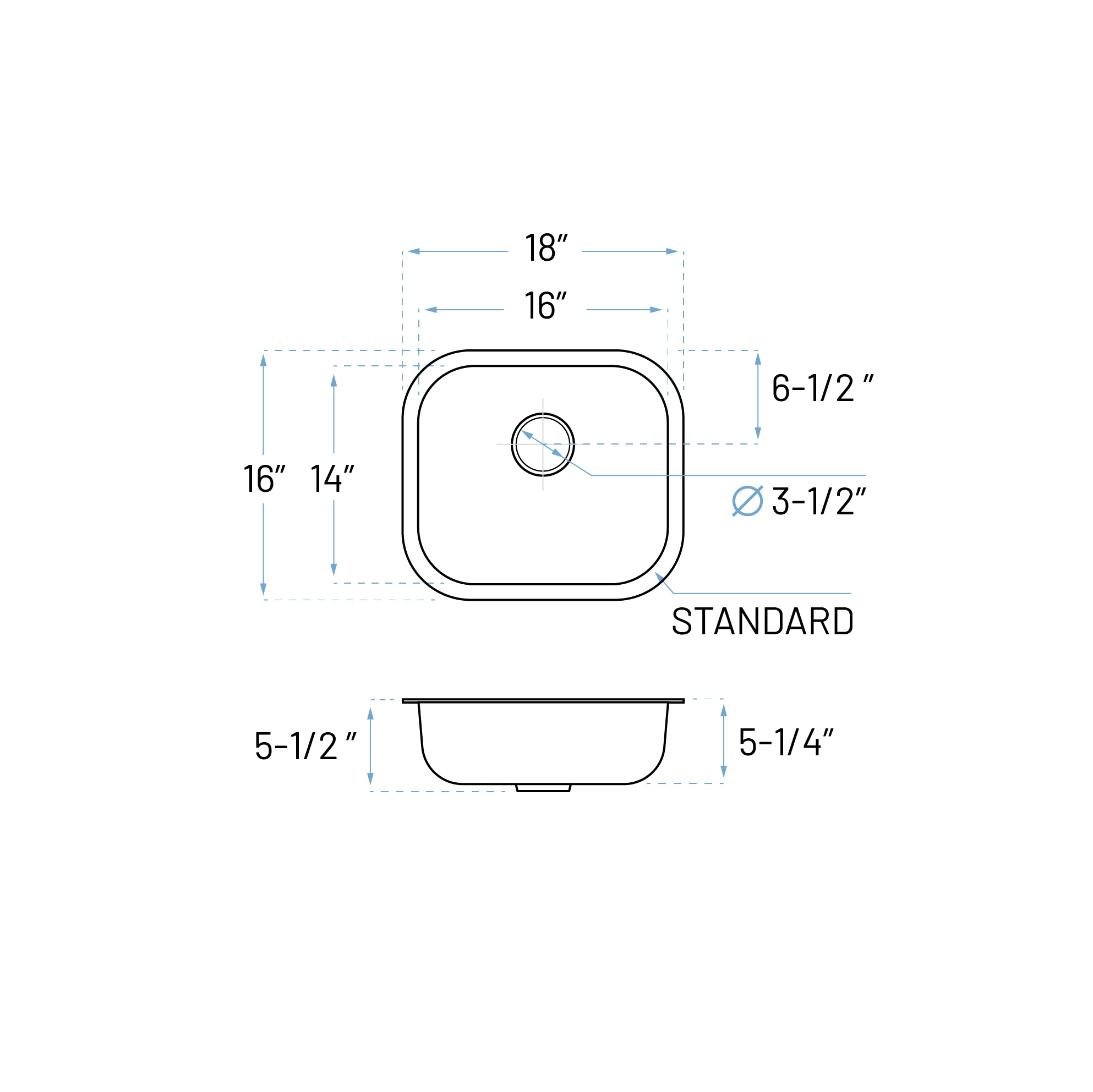

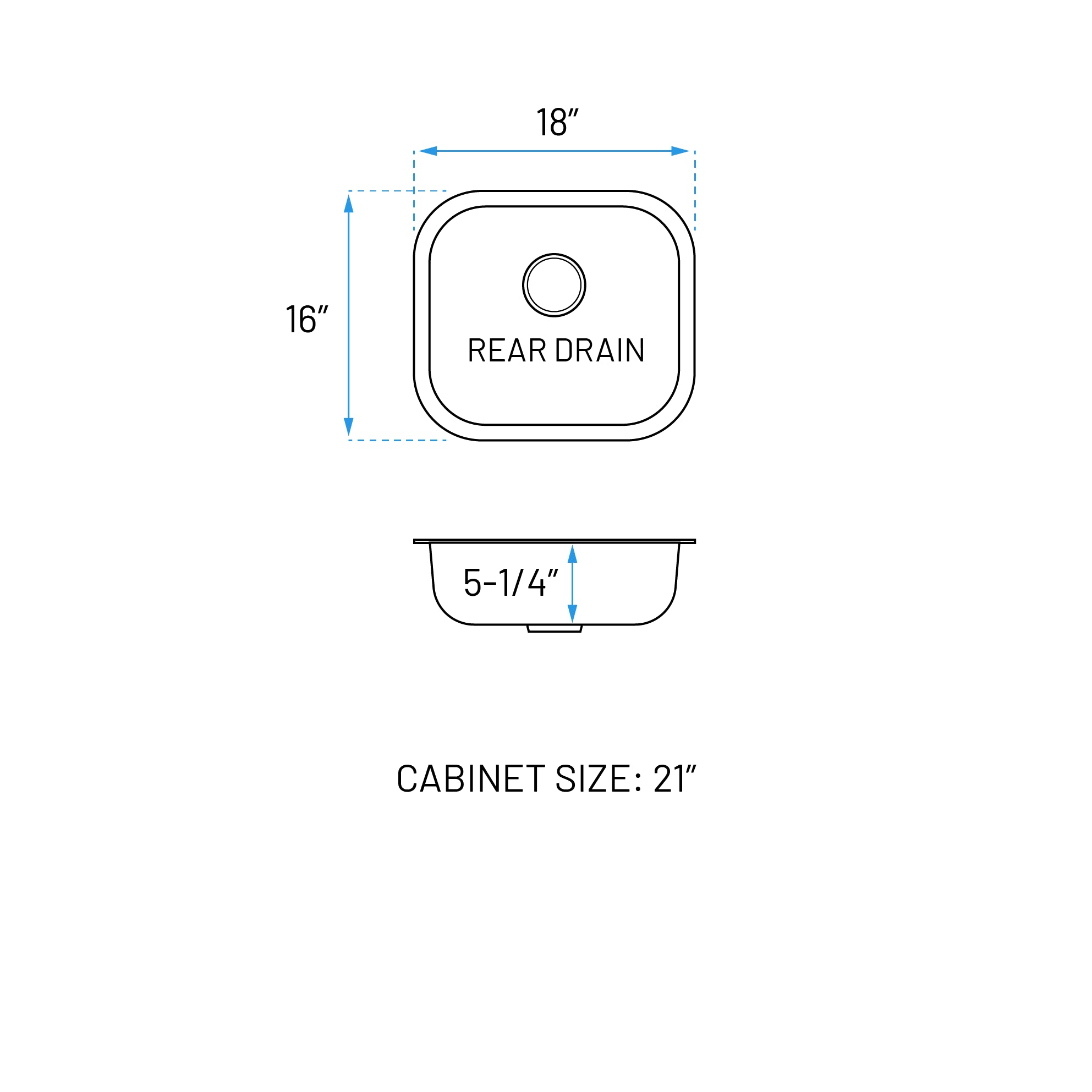

- Size (outside): 18" x 16" x 5-1/2"
- Size (Inside): 16" x 14" x 5-1/4"
- Min Cabinet Size: 21"
- Installation: Undermount
- Material: 18-Gauge 304 Stainless Steel
- Insulation: Noise-Reducing Coated Rubber Sound Pad
- Thickness: 18-gauge
- Warranty: Limited Lifetime Warranty
