20" Compact Undermount Stainless Steel Single Bowl ADA Kitchen and RV Sink, ADA-KSN-2016-S
Choose options
-
Specification Sheet (PDF)
-
CutOut Template (DXF)
-
BIM File (RFA)
-
Installation Guide (PDF)
-
For Additional CutOut Templates and Design Files, click here
The Allora USA 20-inch ADA-Compliant Undermount Stainless Steel Sink offers a compact, accessible solution for kitchens, bar areas, prep stations, or RV installations. With a shallow 5-1/2" bowl depth, it supports ADA-compliant cabinetry by maximizing knee clearance while maintaining durable functionality. Handmade from premium 18-gauge, 304-grade stainless steel and finished with a brushed satin polish, this sink offers lasting durability, easy cleaning, and a sleek modern profile.
-

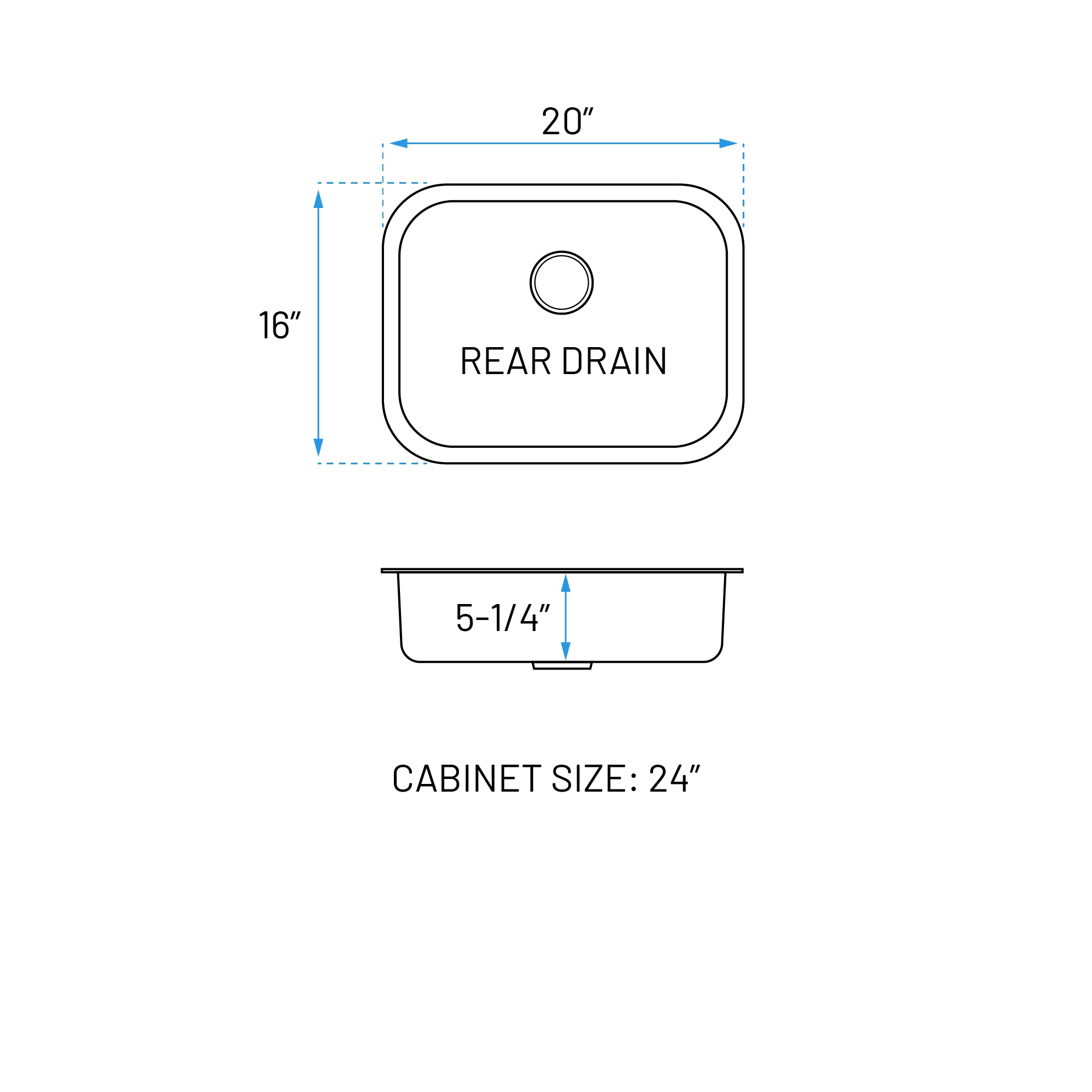

Compact 20" x 18" overall dimensions with ADA-compliant 5-1/2" deep bowl
-
Fits minimum 24" base cabinets, ideal for small kitchens, prep zones, or RVs requiring shallow drainage
-
Crafted from heavy-duty 18-gauge, 304 stainless steel for strength, rust resistance, and durability
-
Brushed satin finish masks light scratches and maintains a sophisticated appearance over time
-

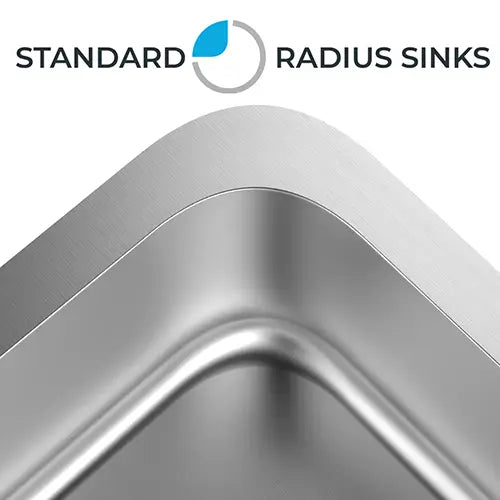

Wide standard-radius corners maximize usable basin space and simplify cleaning
-
Rear 3-1/2" drain placement optimizes workspace and maximizes cabinet storage below
-
Undermount installation offers a seamless, easy-to-clean transition from sink to countertop
-
Full undercoating and sound-dampening pads minimize noise and reduce condensation
-
Non-porous stainless surface resists staining, water spotting, and daily wear
-
Includes cutout template and mounting hardware for installation (drain assembly sold separately)
-
Protected by Allora USA’s Limited Lifetime Warranty
Purpose-built for efficient, accessible design, the Allora USA 20-inch Single Bowl Sink brings style, strength, and ADA functionality to kitchens, prep areas, and mobile living spaces.
- Bowls Single Bowl

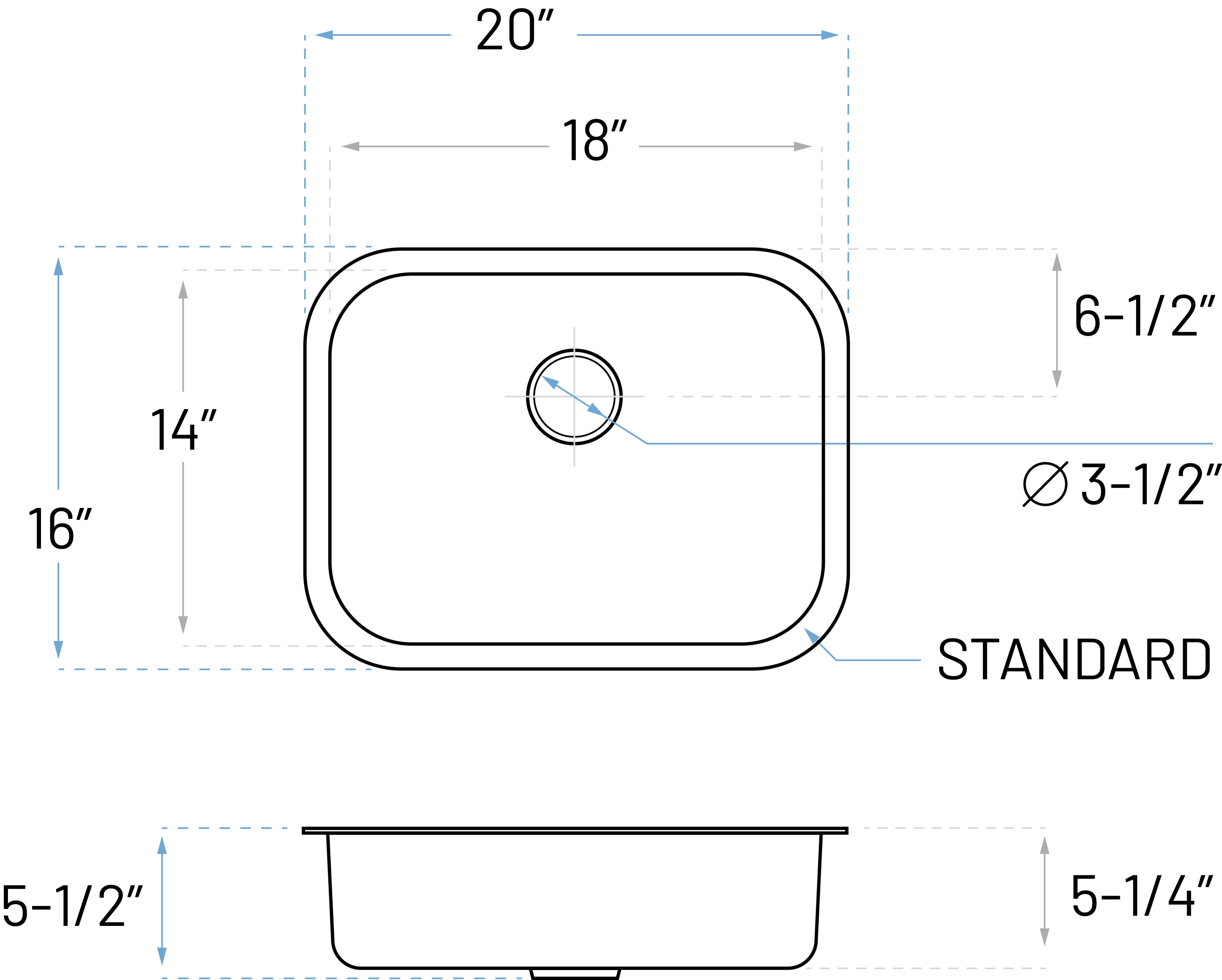

- Size (outside): 20" x 16-1/8" x 5-1/2"
- Size (Inside): 18" x 14-1/8" x 5-1/4"
- Min Cabinet Size: 24"
- Installation: Undermount
- Material: 18-Gauge 304 Stainless Steel
- Insulation: Noise-Reducing Coated Rubber Sound Pad
- Thickness: 18-gauge
- Warranty Limited Lifetime Warranty
