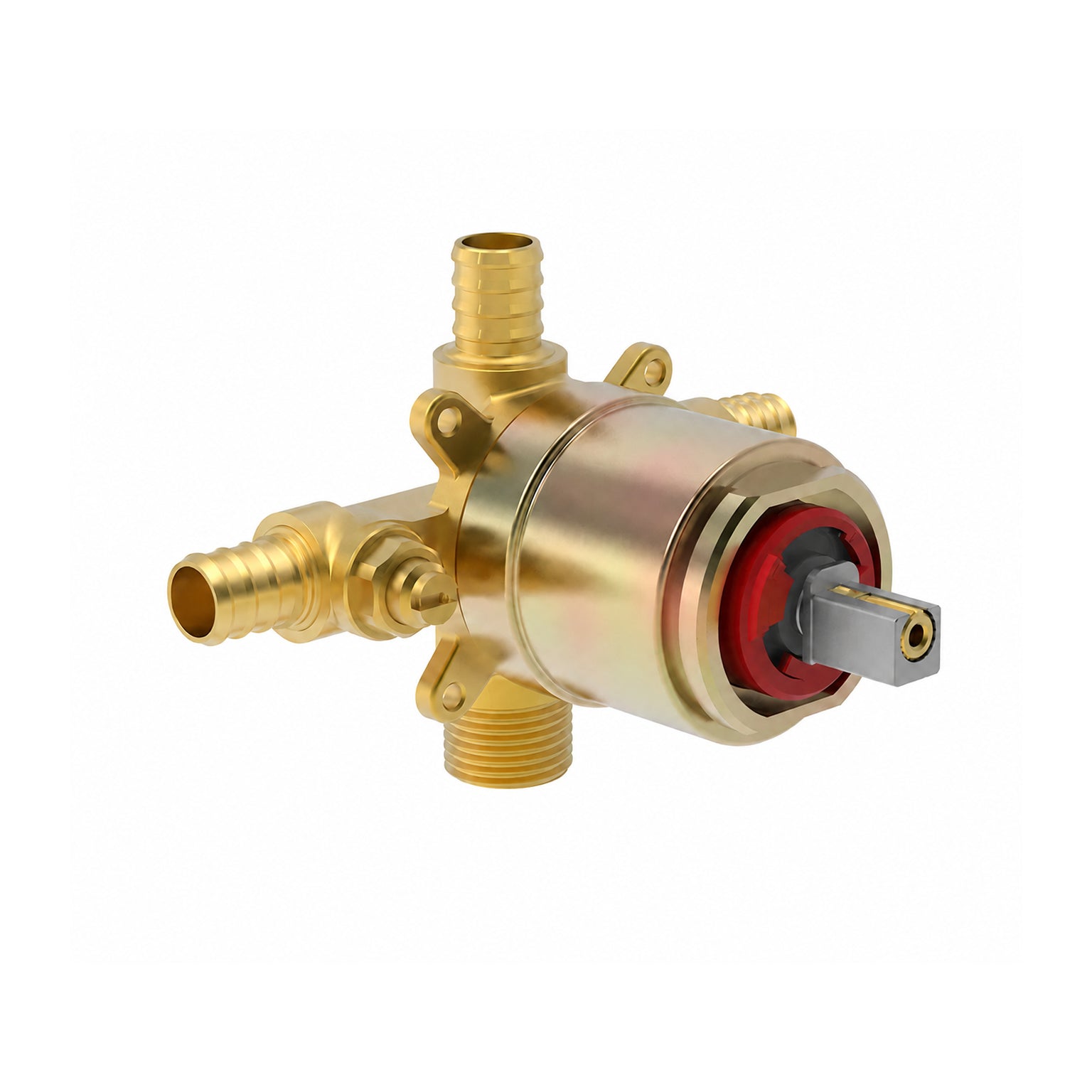

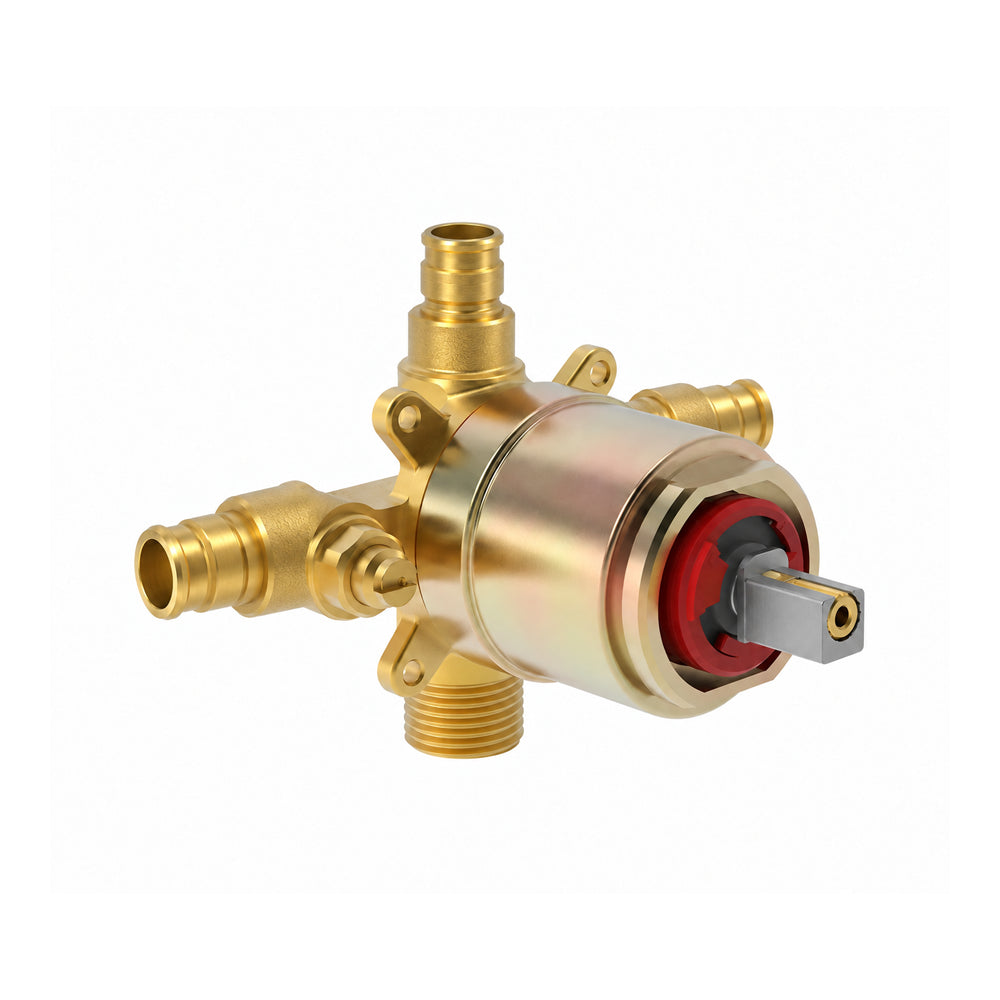

PEX A Pressure Balancing Shower Rough-In Valve with Stops

Built for PEX A supply systems, this all-brass pressure balance rough-in valve connects directly to 1/2 in. cold expansion lines at the hot and cold inlets and the shower riser outlet. Direct PEX A connections eliminate threaded adapters at three of the four ports, which means fewer fittings to buy, fewer joints to make, and fewer potential leak paths behind the wall.

The tub spout outlet is a 1/2 in. NPT threaded port. Tub spouts need full-flow piping to fill quickly and to keep water from rising to the shower head, so this port is designed for rigid pipe rather than PEX.

Inside the forged brass body, a ceramic disc pressure balance cartridge holds outlet temperature steady when pressure shifts elsewhere in the system, such as a toilet flush or a running appliance. An adjustable hot limit stop lets the installer set a maximum output temperature for dependable anti-scald protection. Integrated screwdriver stops shut off water at the valve, so trim work and cartridge service never require closing the main supply.

Service is quick by design. The retaining ring is made with flats, so the cartridge can be secured and removed without screws. The flat-back body sits flush on cross braces for simple, stable mounting, and the included plaster guard acts as both a rough-in depth guide and a support for thin wall materials.

A rough-in range of 1-3/4 in. to 2-3/4 in. from finished wall to valve body covers common wall depths, and built-in hot/cold reversal handles back-to-back installations without extra parts.

This code-compliant valve is a preferred choice for residential tub and shower installations on PEX A plumbing systems.

• 1/2 in. PEX A cold expansion hot and cold inlets and shower outlet
• 1/2 in. NPT tub spout outlet for full-flow tub filling
• All-brass forged body resists corrosion
• Ceramic disc pressure balance cartridge maintains stable outlet temperature
• Adjustable hot limit stop for anti-scald protection
• Integrated screwdriver service stops for local shut-off
• Stainless steel retaining ring with flats for screw-free cartridge and test cap changes
• Flat-back body mounts flush against cross braces
• Plaster guard included; doubles as rough-in guide and thin wall support
• Rough-in range of 1-3/4 in. to 2-3/4 in. from finished wall
• Reversible hot and cold for back-to-back installations
• Certified to ASSE 1016-P; IAPMO listed

• Application: Tub and shower (shower-only when the tub outlet is capped)
• Valve Type: Pressure-balancing rough-in valve
• Installation Type: Concealed wall installation
• Valve Body Material: Brass
• Finish: Unfinished brass
• Cartridge Type: Ceramic disc pressure-balancing cartridge
• Cartridge Included: Yes
• Connection Type: PEX A cold expansion
• Inlet Connections: Two 1/2 in. PEX A cold-expansion connections for hot and cold water
• Shower Outlet: 1/2 in. PEX A cold expansion
• Tub Outlet: 1/2 in. NPT threaded connection
• Compatible Pipe: PEX A tubing approved for cold-expansion connections
• Valve Stops: Integrated screwdriver service stops
• Temperature Limit: Adjustable hot limit stop
• Rough-In Depth: 1-3/4 in. to 2-3/4 in. from finished wall to valve body
• Back-to-Back Installation: Yes; hot and cold connections can be reversed
• Mounting Design: Flat-back body for flush mounting against a cross brace
• Retaining Ring: Stainless steel retaining ring with wrench flats for screw-free cartridge access
• Plaster Guard: Included; functions as a rough-in guide and thin-wall mounting support
• Compatible Trim: Allora shower and tub-and-shower trim kits specified for the AL7-01 valve platform
• Warranty: Limited Lifetime Warranty
