PEX B Crimp Pressure-Balancing Shower Rough-In Valve with Stops

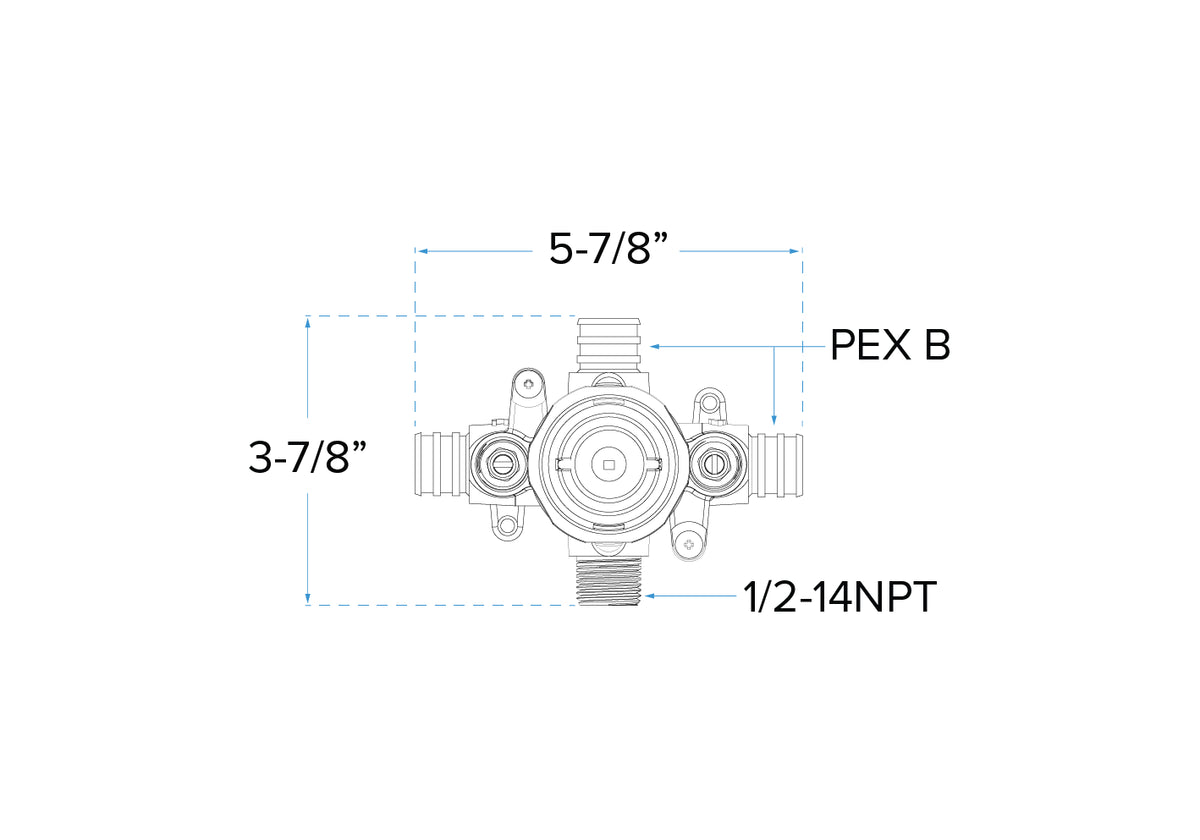

Designed for PEX B crimp plumbing systems, this all-brass pressure-balancing rough-in valve connects directly to 1/2 in. PEX tubing at the hot and cold inlets and shower outlet. The crimp connections eliminate the need for threaded adapters or soldered joints at these three ports, helping installers complete rough-ins efficiently using familiar PEX tools.

The lower tub spout outlet remains a 1/2 in. NPT connection for rigid, full-flow piping. This configuration supports faster tub filling and helps prevent water from rising unexpectedly to the shower head while the tub spout is operating.

A ceramic disc pressure-balancing cartridge responds to changes in hot and cold supply pressure to help maintain a consistent outlet temperature. The adjustable hot limit stop allows the installer to set the maximum water temperature for anti-scald protection. Integrated screwdriver service stops make it possible to isolate the valve for installation or maintenance without shutting off the building’s main water supply.

The forged brass body features a flat back for stable mounting against cross braces. A stainless steel retaining ring with wrench flats simplifies cartridge access, while the included plaster guard provides a clear installation-depth reference and support for thin-wall applications.

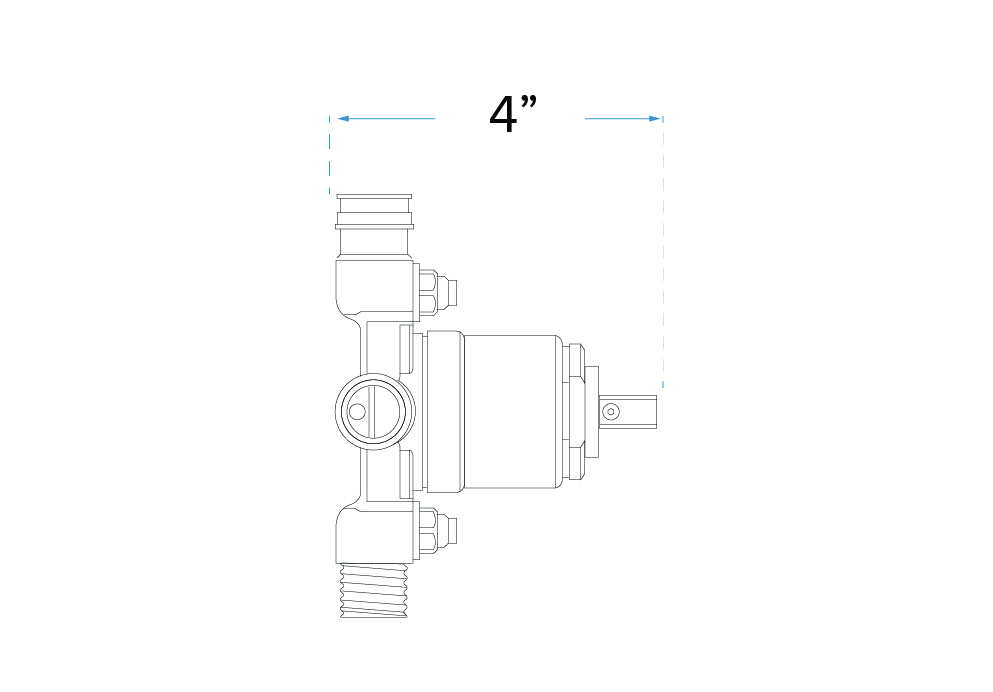

With a rough-in range of 1-3/4 in. to 2-3/4 in. from the finished wall, this PEX B shower valve accommodates common wall assemblies. Reversible hot and cold operation also supports back-to-back bathroom installations, making it a practical choice for multifamily, hospitality, and residential projects.

• 1/2 in. PEX B crimp hot and cold inlets

• 1/2 in. PEX B crimp shower outlet

• 1/2 in. NPT tub spout outlet for rigid, full-flow piping

• Forged all-brass valve body

• Ceramic disc pressure-balancing cartridge

• Adjustable hot limit stop for anti-scald protection

• Integrated screwdriver service stops

• Stainless steel retaining ring with wrench flats

• Flat-back design for secure cross-brace mounting

• Plaster guard included

• Rough-in range of 1-3/4 in. to 2-3/4 in.

• Hot and cold reversal for back-to-back installations

• Application: Tub and shower (shower-only when the tub outlet is capped)
• Valve Type: Pressure-balancing rough-in valve
• Installation Type: Concealed wall installation
• Valve Body Material: Brass
• Finish: Unfinished brass
• Cartridge Type: Ceramic disc pressure-balancing cartridge
• Cartridge Included: Yes
• Connection Type: PEX B crimp
• Inlet Connections: Two 1/2 in. PEX B crimp connections for hot and cold water
• Shower Outlet: 1/2 in. PEX B crimp
• Tub Outlet: 1/2 in. NPT threaded connection
• Compatible Pipe: PEX B tubing approved for crimp connections
• Valve Stops: Integrated screwdriver service stops
• Temperature Limit: Adjustable hot limit stop
• Rough-In Depth: 1-3/4 in. to 2-3/4 in. from finished wall to valve body
• Back-to-Back Installation: Yes; hot and cold connections can be reversed
• Mounting Design: Flat-back body for flush mounting against a cross brace
• Retaining Ring: Stainless steel retaining ring with wrench flats for screw-free cartridge access
• Plaster Guard: Included; functions as a rough-in guide and thin-wall mounting support
• Compatible Trim: Allora shower and tub-and-shower trim kits specified for the AL7-01 valve platform
• Warranty: Limited Lifetime Warranty
